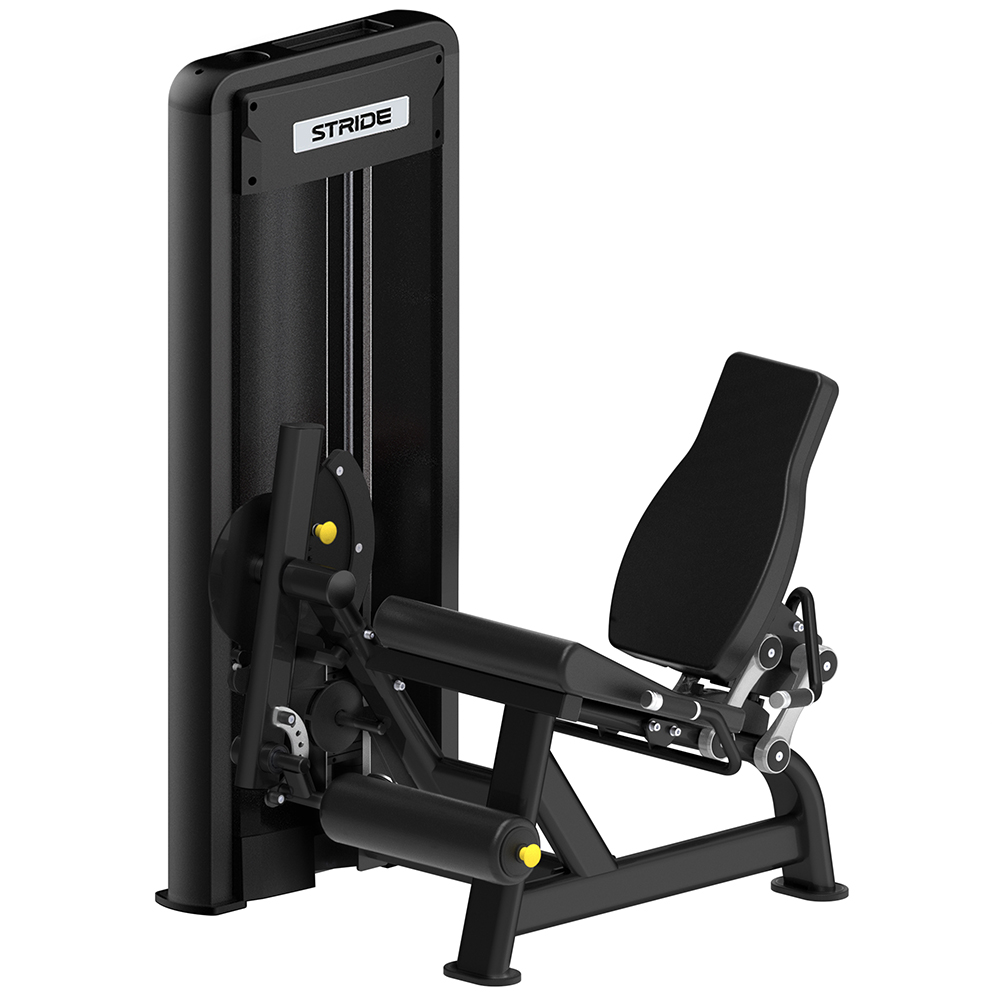

STRIDE leg extension
The STRIDE Leg Extension isolates the quadriceps through a controlled knee-extension movement. A 120 kg CNC-machined weight stack with 5 kg increments provides progressive resistance.
Semi-elliptical CR tube frame (3 mm wall thickness) with electrostatic powder coating. Aluminium alloy torsion-spring seat adjustment for quick user setup. 7×19 strand cables rated to 1,500 kg with HDPE sealed-bearing pulleys for smooth, quiet motion.
High-density foam padding with wear-resistant PVC covers. Product dimensions: 1400 × 1660 × 1200 mm. Product weight: 220 kg.
Warranty: 4 years on the metal frame (excluding coatings), 1 year on components.
| Weight Stack Range | 120 |
| Cable Type | Commercial-use quality cable specs: 7×19 strand construction. Maximum 1500KG strength. |
| Max Load Capacity KG | 180KG |
| Handle Diameter mm | Φ35mm |
| Grip Type | TPV: Thermoplastic Vulcanizate Handle |
| Steel Information (Frame) | Main frame is constructed of semi elliptical tubes. Functional section are flat oval tubes. The movement arm joint pipe are flat oval tubes |
| Material Frame | 3mm Steel |
| Material Feet | Rubber |
| Material Cover | ABS |
| Adjusting Method | Torsion Spring Adjustment |
| Product Length mm | 1044 |
| Product Width mm | 1176 |
| Product Height mm | 1661 |
| Product Weight KG | 45 |
| Box Length mm | 1730 |
| Box Width mm | 830 |
| Box Height mm | 340 |
| Box Weight KG | 65 |
| No of Boxes per Unit | 2 Wooden cases. Weight stacks are packed separately |
| Packaging Type | Wooden Case |
| Color 1 (RAL/Pantone) | Black |
| Suitable for outdoor installation/storage? | No |
| Assembly Required | Yes |
| Stackable (Y/N) | Yes |
| USP / PRODUCT | Please Refer To Ppt |
| Warranty Period | 4 Years Warranty: Metal Frame Excluding Coatings. 1 Year Warranty: Components |
