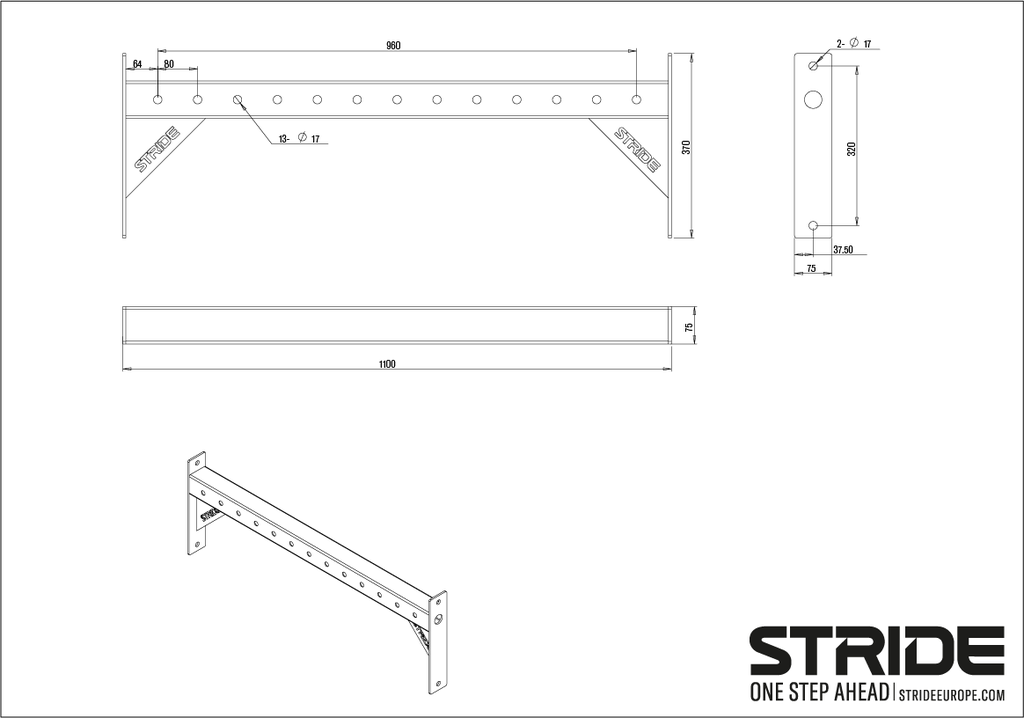

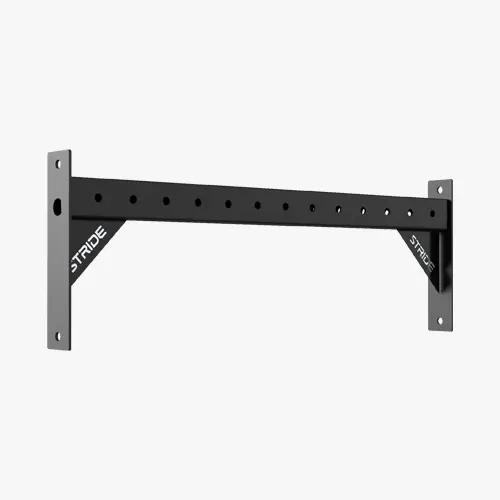

Raptor 1.10m logo plate crossbeam
1 sold in last 24 hours
| Warranty Period | 1 Year Provided The Product Is Not Damaged Deliberately |
| Product Width mm | 370 |
| Product Height mm | 75 |
| Product Weight KG | 11 |
| Box Length mm | 1140 |
| Box Width mm | 420 |
| Box Height mm | 170 |
| Box Weight KG | 24 |
| No of Boxes per Unit | 2Pcs Into One Carton |
| Packaging Type | Carton |
| Material (+finish) | Powder Painting Steel |
| Color 1 (RAL/Pantone) | Black |
| Suitable for outdoor installation/storage? | No |
| Assembly Required | Yes |
| Stackable (Y/N) | Yes |
| USP / PRODUCT | The Steel Is Treated With An Electrostatic Powder Coating, Providing A Strong Adhesion And Exceptional Durability, Reliable Structure And Made To Last. Nice Welding And Precise Cutting On Measurement |
| Upright Height mm | Stride Raptor Series Only Contain Two Different Heights Of Uprigths: 2.40M Uprights And 2.75M Uprights The Squat Spacing Is 1100mm And The Interval Spacing Is 1800mm |
| Steel Gauge | 23 Gauge 75*75mm Tubes And 3mm Thick Steel |
| Hole Spacing mm | 8Cm Center Hole Spacing |
| Hole Size | 17mm Hole Diameter M16 Screws |
| Material | Steel |
| Assembly Material Included | Only Included The Hardware Like Screws The Tools Like The Allen Key Or The Wrench Are Not Included |
| Max Weight | Ball Rail 1.10M:Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. Ball Rail 1.80M:Loading Capacity 250KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.80M:Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.80M：Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.10M: Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.80M: Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. |
