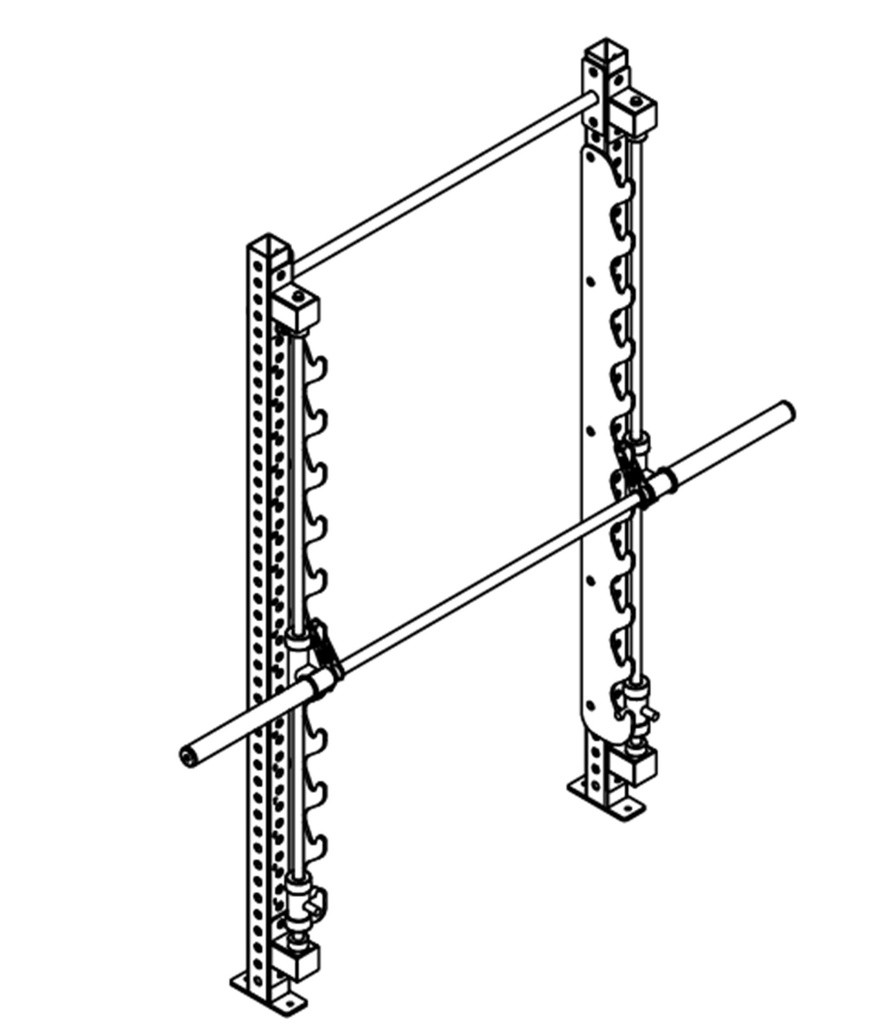

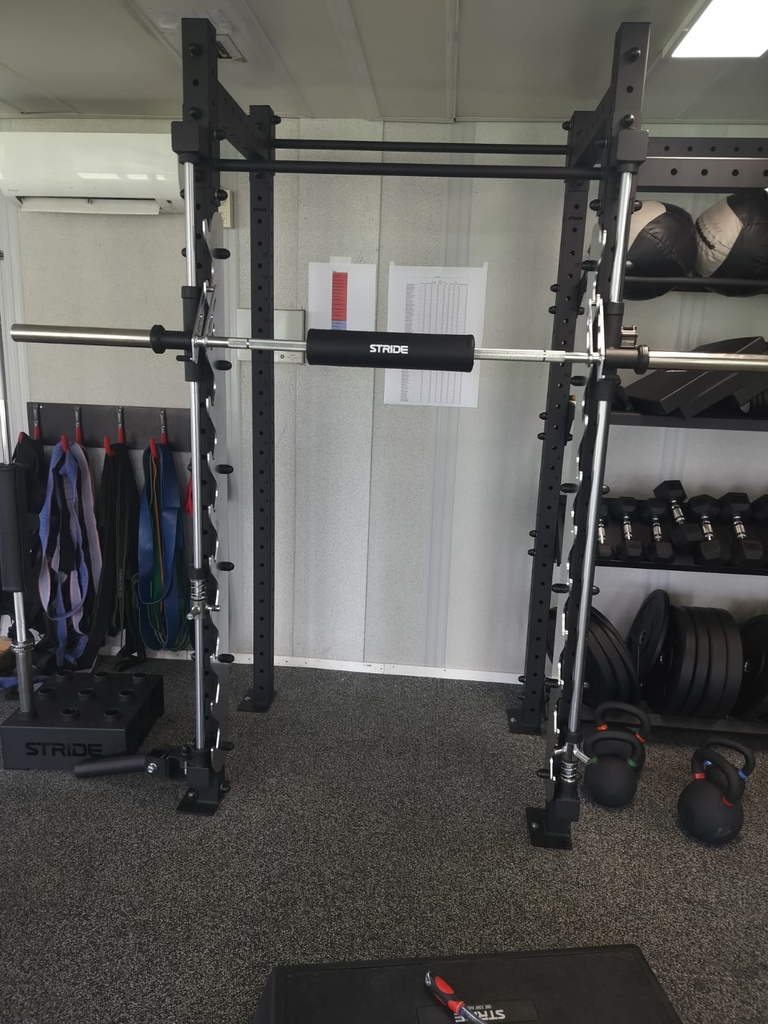

RAPTOR smith machine rack attachment
The RAPTOR Smith Machine Rack Attachment integrates a guided barbell system into your RAPTOR rig. The vertical bar track provides controlled linear motion for squats, bench presses, shoulder presses, and rows — giving athletes the benefits of free-weight mechanics with added bar path stability.
At 2400 mm height and 50 kg, the attachment is a substantial addition to any RAPTOR power rack or multi-bay setup. Made from powder-coated steel with the same 80 mm hole spacing and M16 hardware, it connects seamlessly to the existing rig structure.
Shipped in two separate cartons for manageable handling. Ideal for commercial gyms, rehabilitation facilities, and training centres that want smith machine capability without a standalone unit.
| Product Width mm | 220 |
| Product Height mm | 2400 |
| Product Weight KG | 50 |
| Box Length mm | 1860 |
| Box Width mm | 185 |
| Box Height mm | 50 |
| Box Weight KG | 52,5 |
| No of Boxes per Unit | 1 Set Comes With 2 Separate Cartons |
| Packaging Type | Carton |
| Material (+finish) | Powder Painting Steel |
| Color 1 (RAL/Pantone) | Black |
| Suitable for outdoor installation/storage? | No |
| Assembly Required | Yes |
| Stackable (Y/N) | Yes |
| USP / PRODUCT | The Steel Is Treated With An Electrostatic Powder Coating, Providing A Strong Adhesion And Exceptional Durability, Reliable Structure And Made To Last. Nice Welding And Precise Cutting On Measurement |
| Upright Height mm | Stride Raptor Series Only Contain Two Different Heights Of Uprigths: 2.40M Uprights And 2.75M Uprights The Squat Spacing Is 1100mm And The Interval Spacing Is 1800mm |
| Steel Gauge | 81 Gauge 75*75mm Tubes And 3mm Thick Steel |
| Hole Spacing mm | 8Cm Center Hole Spacing |
| Hole Size | 17mm Hole Diameter M16 Screws |
| Material | Steel |
| Assembly Material Included | Only Included The Hardware Like Screws The Tools Like The Allen Key Or The Wrench Are Not Included |
| Max Weight | Ball Rail 1.10M:Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. Ball Rail 1.80M:Loading Capacity 250KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.80M:Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.80M：Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.10M: Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.80M: Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. |
| Warranty Period | 1 Year |
