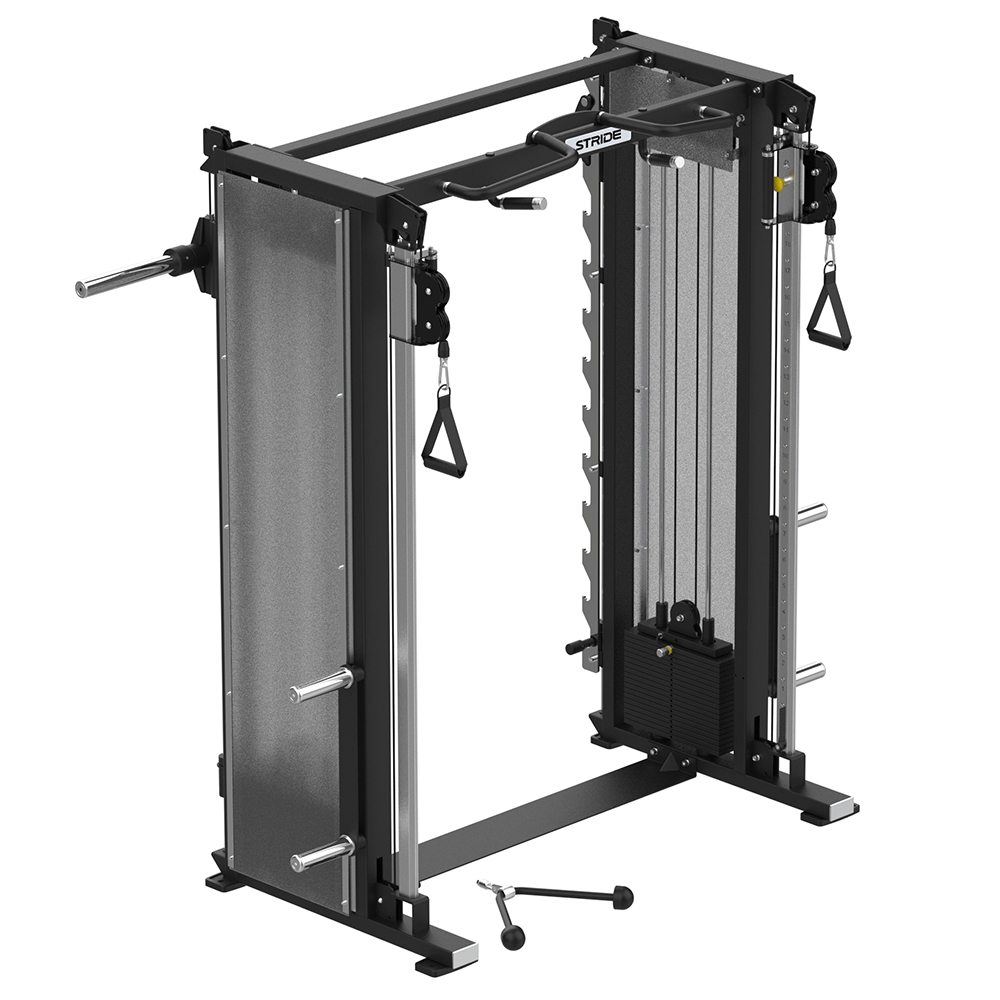

STRIDE Functional Dual Trainer (Smith)
The STRIDE Functional Dual Trainer (Smith) combines a guided smith bar with a dual cable functional trainer in a single frame, covering barbell and cable exercises without requiring separate stations.
The smith bar runs on a linear track for guided squats, bench presses, and overhead presses. Two independent 100 kg weight stacks with CNC-machined plates drive the cable pulleys for rows, flyes, curls, and functional movements. Cables use 7×19 strand construction rated to 1,500 kg tensile strength with PA nylon coating.
The cold-rolled CR tube frame (3 mm wall thickness) with electrostatic powder coating provides commercial-grade durability. HDPE pulleys with sealed bearings ensure smooth, quiet resistance. Thermoplastic rubber grips with aluminium alloy caps deliver a secure, sweat-resistant hold.
Additional features include adjustable pull-up bars, weight plate storage pins, landmine attachment, and dip bars. Product dimensions: 2443 × 2216 × 1076 mm.
Warranty: 4 years on the metal frame (excluding coatings), 1 year on components.
| Weight Stack Range | 100KG*2 |
| Cable Type | Commercial-use quality cable specs: 7×19 strand construction. Maximum 1500KG strength. |
| Max Load Capacity KG | 180KG |
| Handle Diameter mm | Φ35mm |
| Grip Type | TPV: Thermoplastic Vulcanizate Handle |
| Steel Information (Frame) | Rectangular tubes |
| Material Frame | 3mm Steel |
| Material Feet | Rubber |
| Material Cover | Acrilyc |
| Adjusting Method | Not Applicable |
| Product Width mm | 1076 |
| Product Height mm | 2233 |
| Product Weight KG | 261 |
| Box Length mm | 2300 |
| Box Width mm | 1120 |
| Box Height mm | 490 |
| Box Weight KG | 327 |
| No of Boxes per Unit | 1 Wooden Case |
| Packaging Type | Wooden Case |
| Material (+finish) | Powder Painting Steel |
| Color 1 (RAL/Pantone) | Black |
| Suitable for outdoor installation/storage? | No |
| Assembly Required | Yes |
| Stackable (Y/N) | Yes |
| USP / PRODUCT | Please Refer To Ppt |
| Warranty Period | 4 Years Warranty: Metal Frame Excluding Coatings. 1 Year Warranty: Components |
