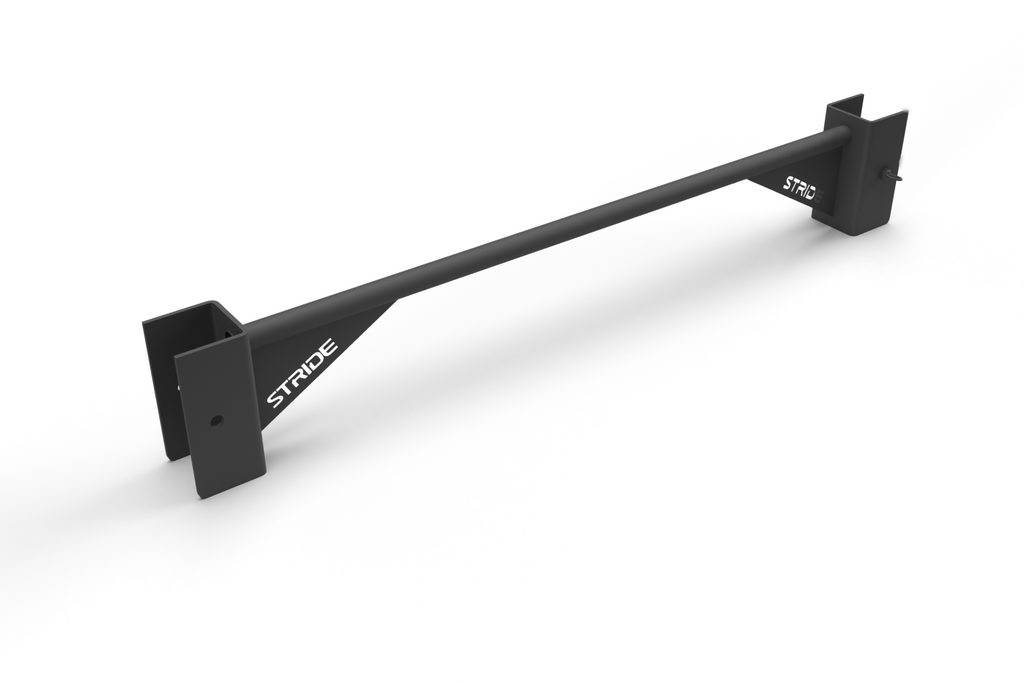

RAPTOR 1.80m pull-up bar
The RAPTOR 1.80m Pull-Up Bar is a straightforward, no-frills attachment for any RAPTOR rig setup. Designed for durability and regular use, it provides a reliable overhead grip station for pull-ups, hanging leg raises, and kipping variations.
Constructed from 75 × 75 × 3 mm steel tube with an electrostatic powder-coated finish, this bar handles the demands of commercial training environments without showing wear. The streamlined profile sits cleanly across 1.80m bay spacing and connects using standard 80 mm centre-hole spacing with M16 hardware.
At just 6.25 kg, the bar is easy to handle during assembly while remaining structurally solid under load. Ideal for gym owners, coaches, and facility planners looking for dependable, modular rig components.
| Product Width mm | 210 |
| Product Height mm | 75 |
| Product Weight KG | 6,25 |
| Box Length mm | 1845 |
| Box Width mm | 260 |
| Box Height mm | 155 |
| Box Weight KG | 15,5 |
| No of Boxes per Unit | 2Pcs Into One Carton |
| Packaging Type | Carton |
| Material (+finish) | Powder Painting Steel |
| Color 1 (RAL/Pantone) | Black |
| Suitable for outdoor installation/storage? | No |
| Assembly Required | Yes |
| Stackable (Y/N) | Yes |
| USP / PRODUCT | The Steel Is Treated With An Electrostatic Powder Coating, Providing A Strong Adhesion And Exceptional Durability, Reliable Structure And Made To Last. Nice Welding And Precise Cutting On Measurement |
| Upright Height mm | Stride Raptor Series Only Contain Two Different Heights Of Uprigths: 2.40M Uprights And 2.75M Uprights The Squat Spacing Is 1100mm And The Interval Spacing Is 1800mm |
| Steel Gauge | 32 Gauge 75*75mm Tubes And 3mm Thick Steel |
| Hole Spacing mm | 8Cm Center Hole Spacing |
| Hole Size | 17mm Hole Diameter M16 Screws |
| Material | Steel |
| Assembly Material Included | Only Included The Hardware Like Screws The Tools Like The Allen Key Or The Wrench Are Not Included |
| Max Weight | Ball Rail 1.10M:Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. Ball Rail 1.80M:Loading Capacity 250KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Dumbbell Shelf 1.80M:Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.10M:Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Flat Shelf 1.80M：Loading Capacity 350KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.10M: Loading Capacity 300KG,The Weights Need To Be Evenly Spaced Out. Plate Rack 1.80M: Loading Capacity 400KG,The Weights Need To Be Evenly Spaced Out. |
| Warranty Period | 1 Year |
